Winways Medium Throw ALR Fixed Frame Fresnel Screen

Feature:

• Retain maximum advantage of the boost contrast and enhance image quality in the challenging user bright environment.
• The Fixed Frame screen is light and convenient, easy to install, and suitable for various application scenarios.
• It is the first choice for users who enjoy DIY.

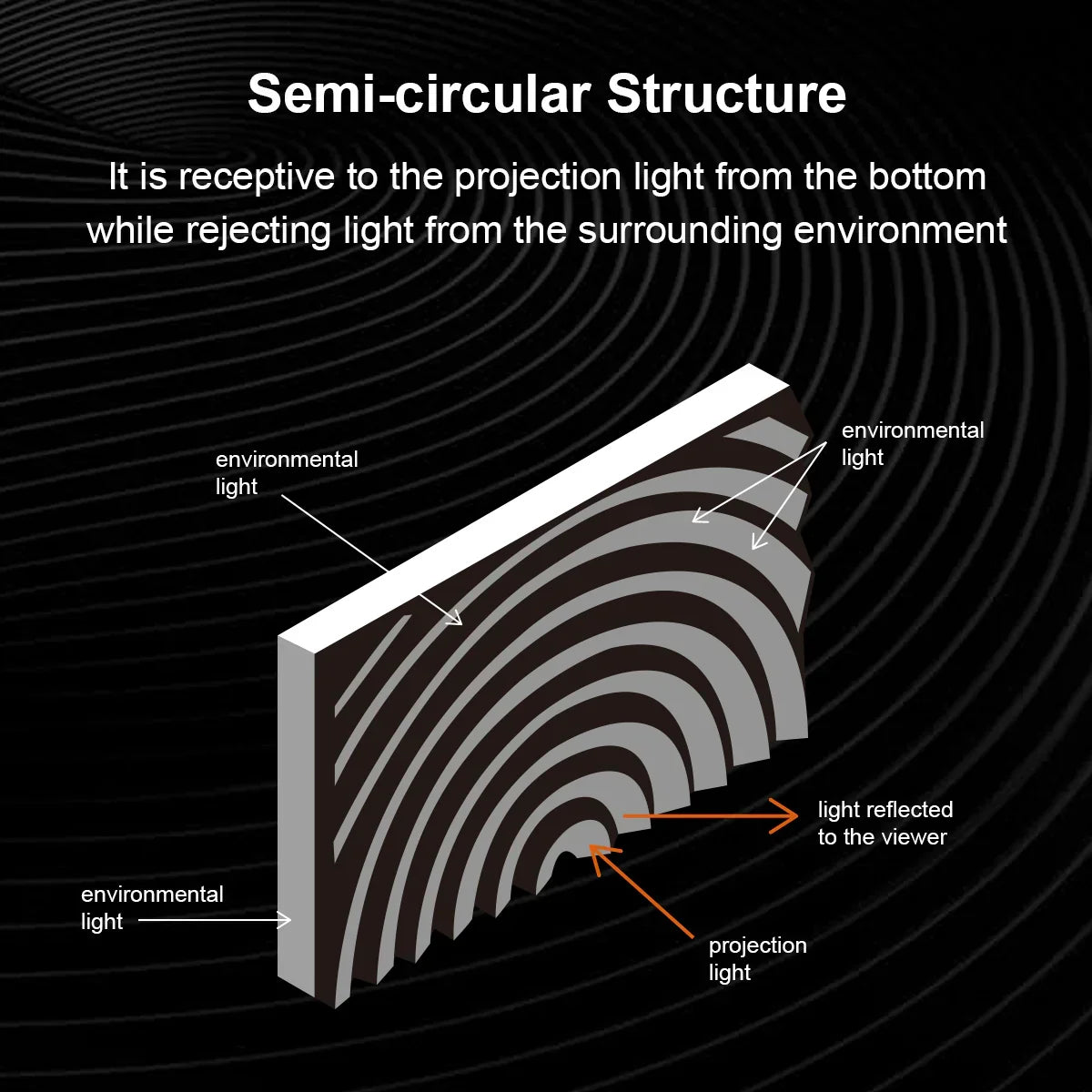

• Optical screen is a projection screen with a variety of fine optical structures.
• These light path structures can adjust the path of light, with the effect of improving the brightness of the picture, resisting ambient light restoring true color, and improving the contrast of the picture.

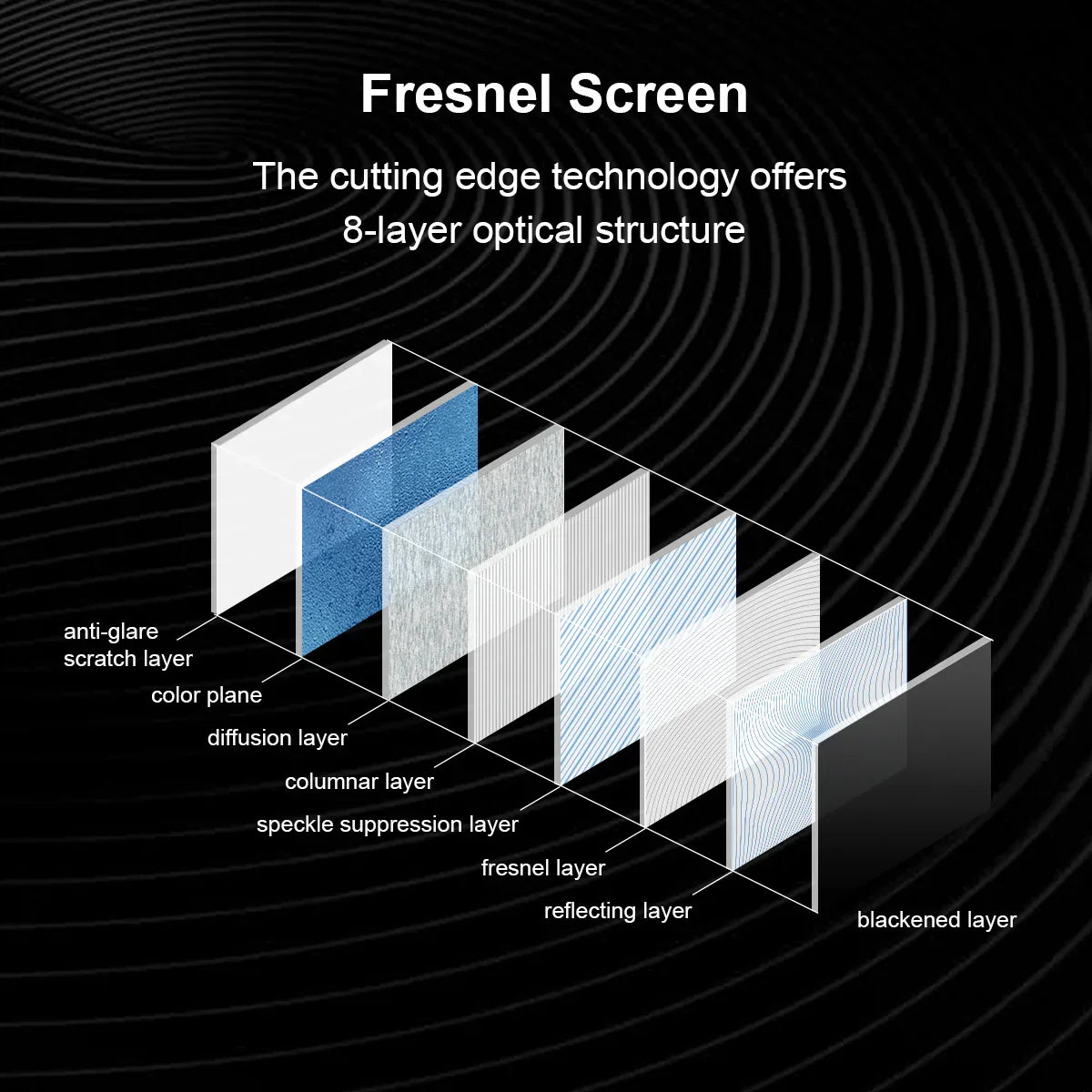

• Unique optical screen technologies
• Best-in-class performance with traditional projector screen

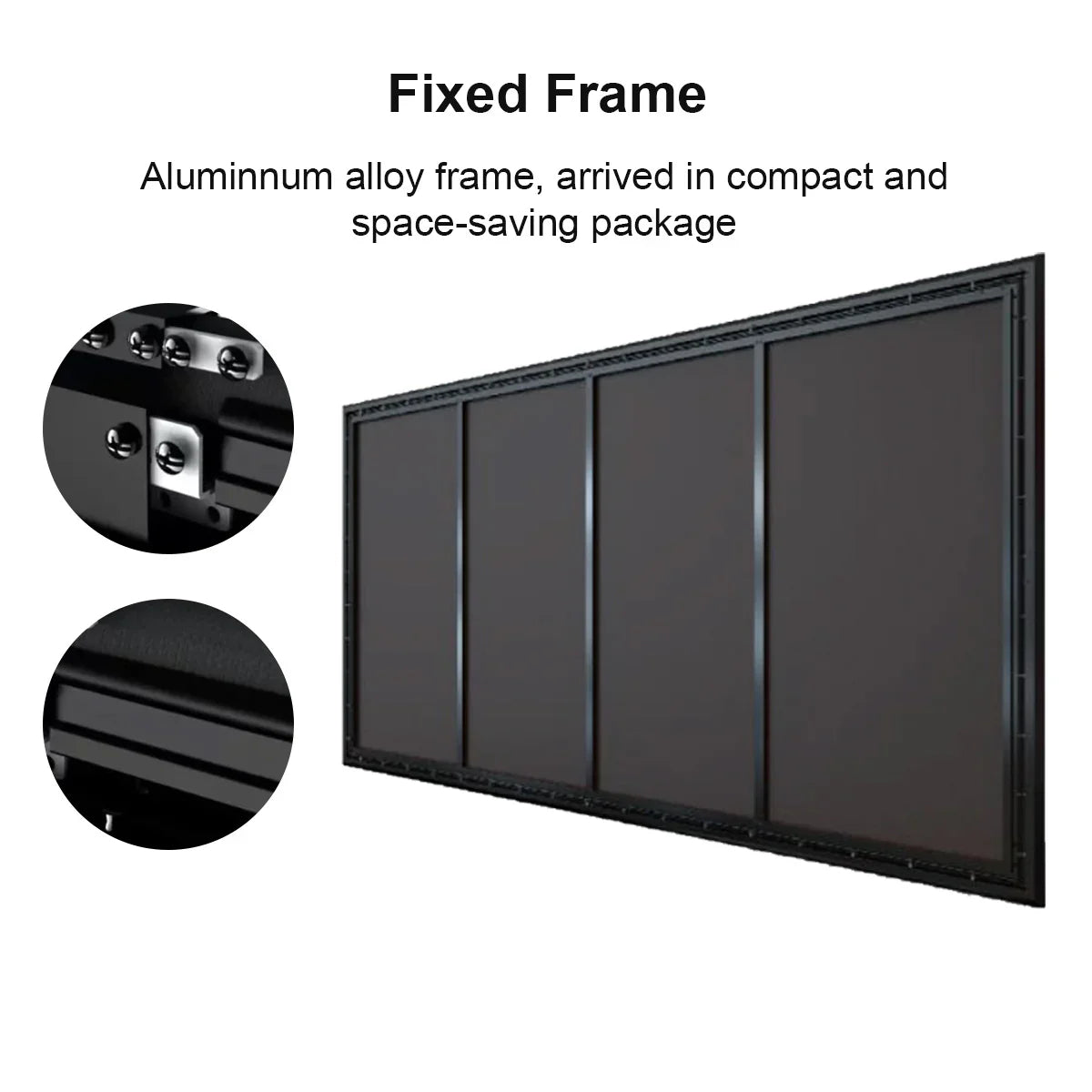

• Fixed Frame installation design
• Easy to clean as anti-glare scratch layer
• Compact, space-saving package
• Unrivalled front projection image-contrast
• Great large size flat screen display
• Protect eyes
• RoHS Certification
• Compatible with a wide range of traditional long throw projectors

Specification:

• Brand: Winways

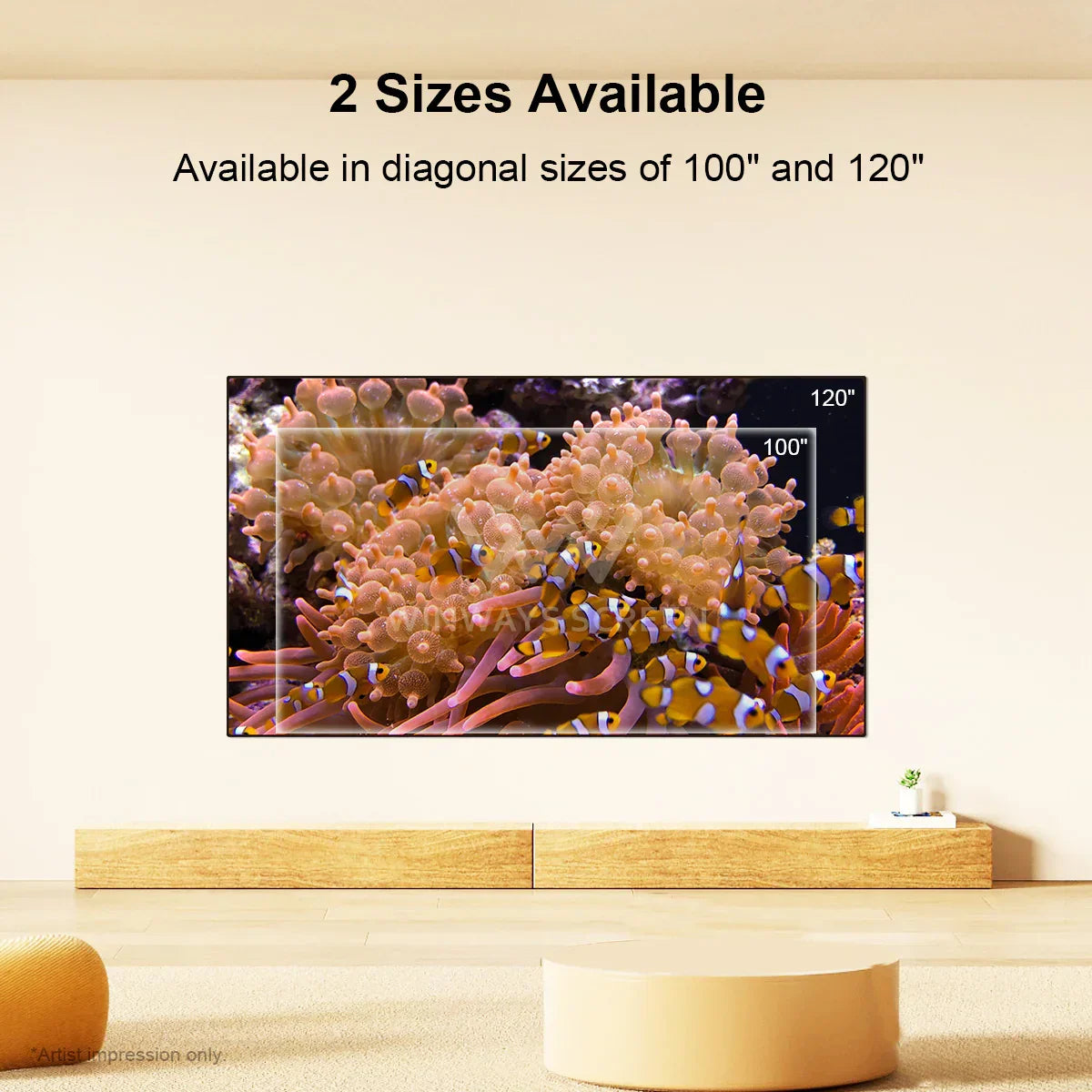

• Model: SK-100, SK-120
• Peak gain: 1.6

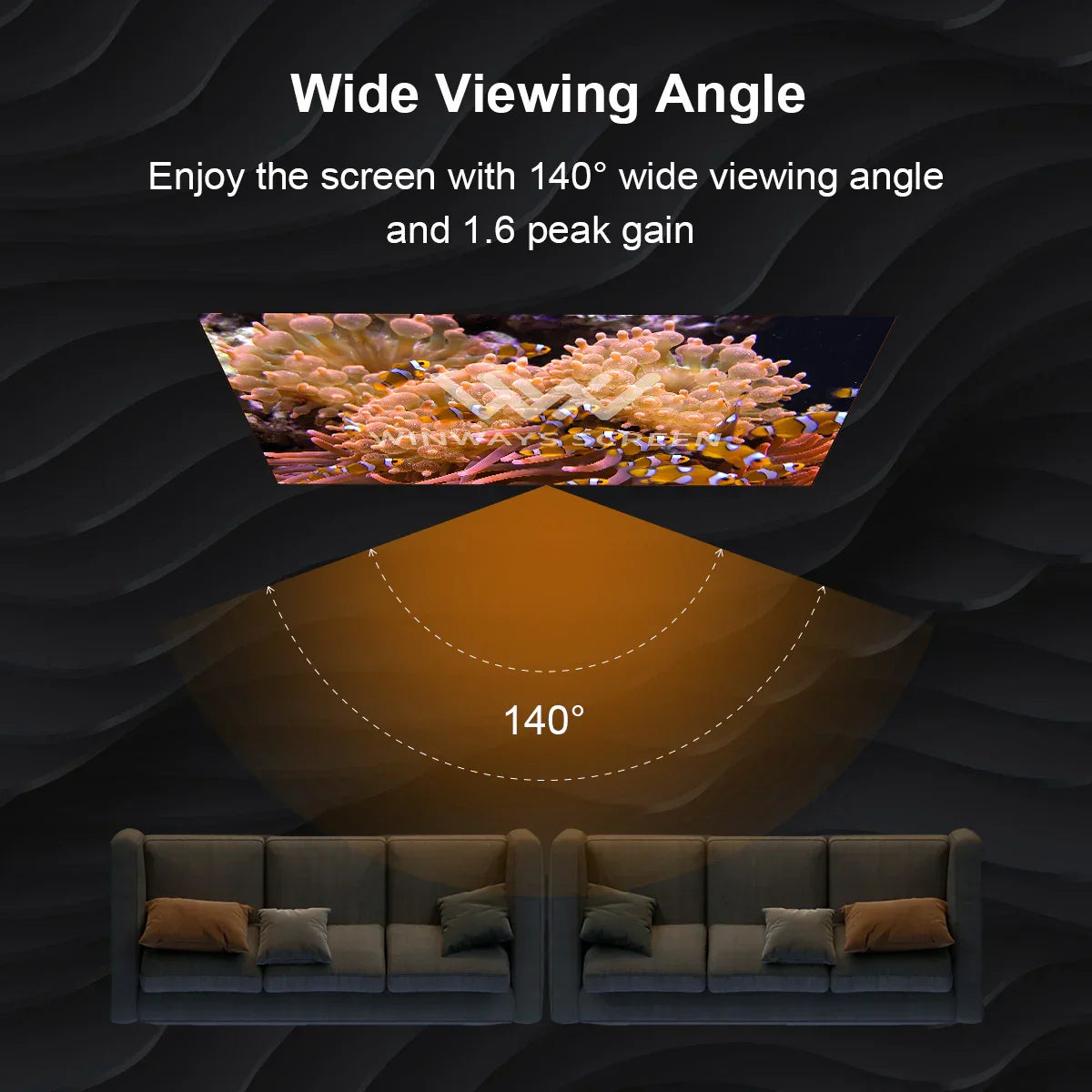

• Horizontal Half-Gain Angle: 18°
• ALR Rate: 85%
• Screen Thickness: 1.8mm
• Material: PET
• Color: Dark Grey
• Frame Color: Black
• Frame Width: 8.5mm
• Contrast: 150:1 (Bright Room)
• Working Temperature: -10°C-40°C
• Working Humidity: 30%-70% RH
• Support Projector Lens Throw Ratio: 1.0-1.39

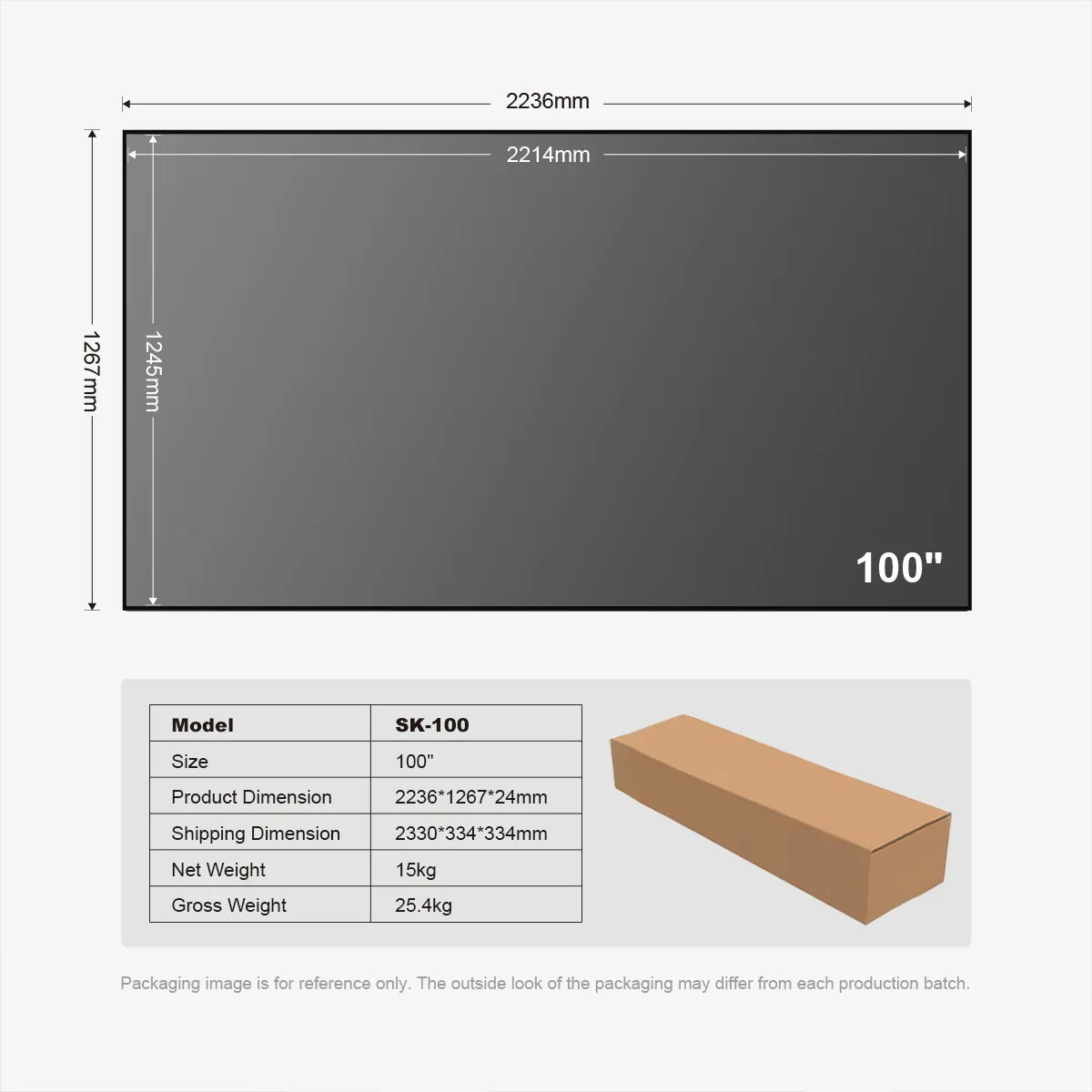

• SK-100
• Image Area: 221.4*124.5cm
• Screen Size (including Frame): 223.6*126.7*2.4cm
• Shipping Dimension: 233×33.4×33.4cm
• Gross Weight: 25.4kg
• Net Weight: 15kg
• Optimal Projector Installation Height: 63.1cm

• SK-120

• Image Area: 265.7*149.4cm
• Screen Size (including Frame): 268.6*152.3*2.4cm
• Shipping Dimension: 277.3×33.6×33.6cm
• Gross Weight: 40kg
• Net Weight: 21kg
• Optimal Projector Installation Height: 52.8cm

Warranty:

• Manufacturer Warranty: 1 Year
• Use: Not intended or designed for commercial use.

Notice: Please handle the screen with care during installation—avoid uneven force, follow the manual, and use two-person assistance to prevent membrane damage.
