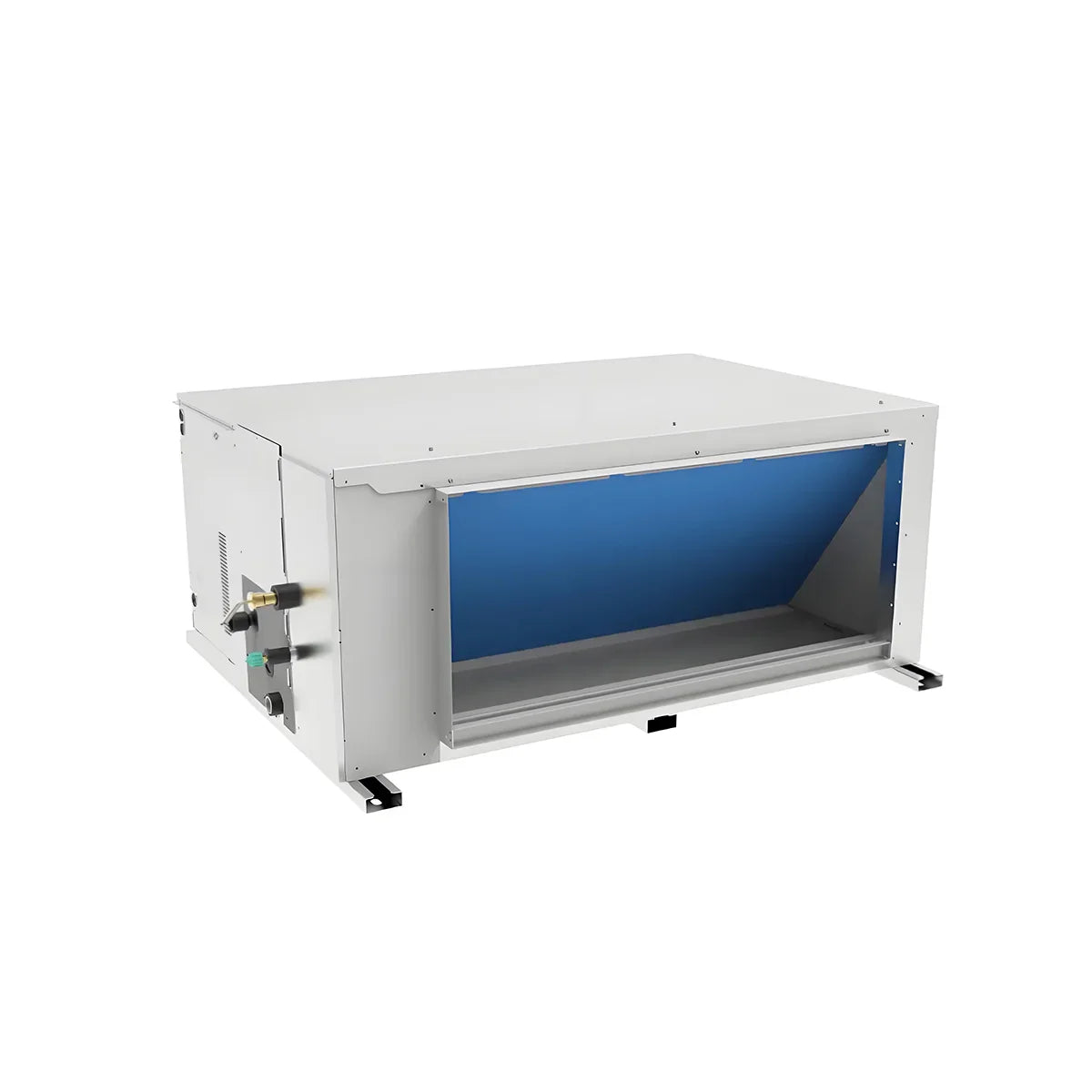

Midea VRF Indoor Units High Static Pressure Duct 16KW

• 16kW ESP up to 250Pa
• 299mm ultra-thin height
• Static pressure adaption, constant air volume supply
• Built-in 1200mm high-lift drain pump
• Optional HEPA filter with H13 rating
• Optional medium to high efficiency filter

Specification:

• Brand:Midea
• Capacity:16kw
• Power:1-phase, 220-240V, 50/60Hz

• Indoor unit:
  Net dimensions (HxWxD):1400×299×750mm
  Packed dimensions (HxWxD):1565×359×890mm
  Net/Gross weight:46.5/50.5kg
• Pipe connections :

  Liquid/Gas pipe: Ф9.52/Ф15.9mm


  Drain pipe:OD Ф25
• Cooling:
  Capacity: 16kw; 54.6kBut/h

  Input: 339W
• Heating:
  Capacity: 18kw; 61.4kBut/h
  Input: 339W
• Airflow rate：2600/2448/2297/2145/1993/1842/1690 m³/h
• Sound pressure level：44/43/41/40/38/37/35 dB(A)
