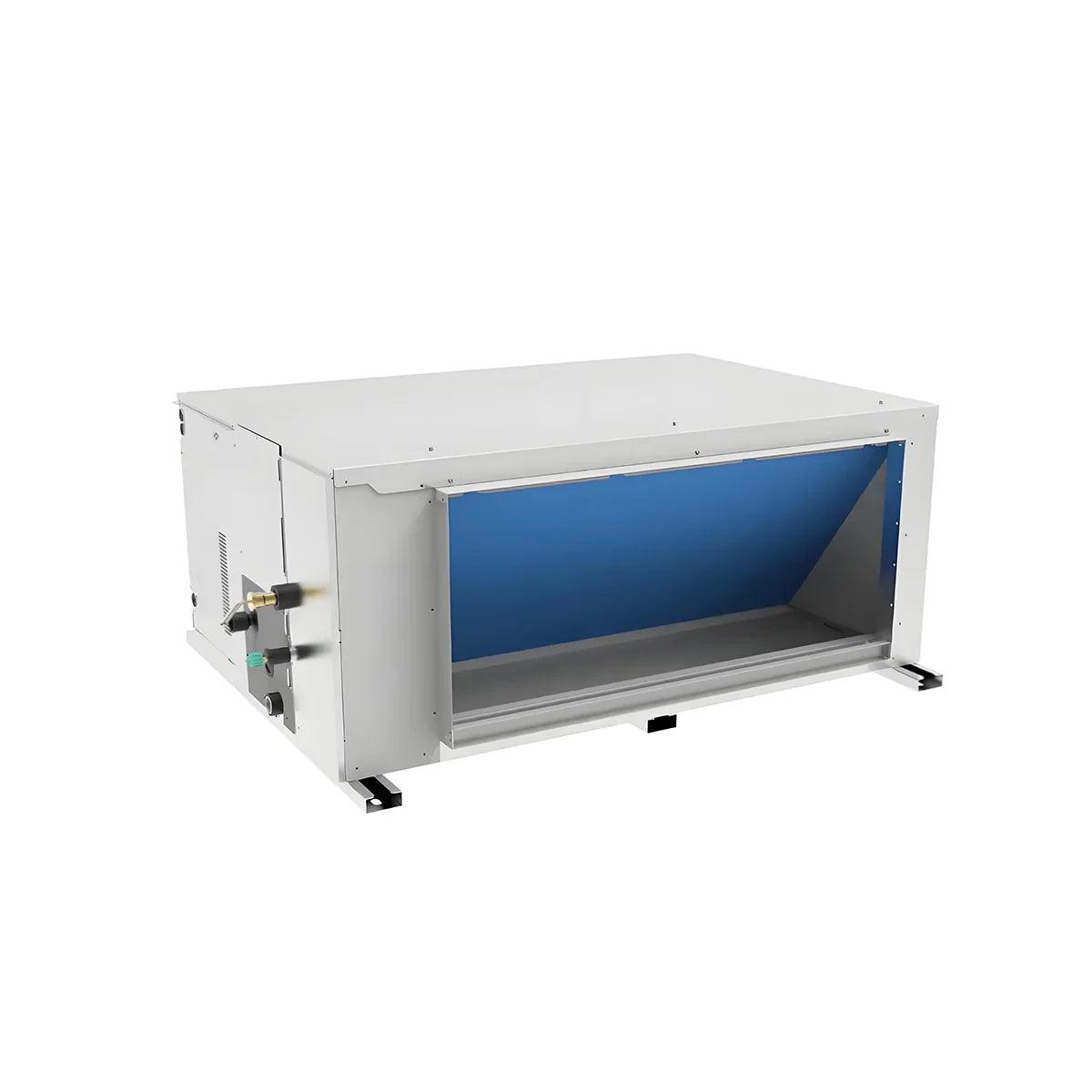

Midea VRF Indoor Units High Static Pressure Duct 28KW

• 28kW ESP up to 400Pa
• Static pressure adaption, constant air volume supply
• Built-in 1200mm high-lift drain pump
• Optional HEPA filter with H13 rating
• Optional medium to high efficiency filter

Specification:

• Brand:Midea
• Capacity:28kw
• Power:1-phase, 220-240V, 50/60Hz

• Indoor unit:
  Net dimensions (HxWxD):1300×580×900mm
  Packed dimensions (HxWxD):1530×730×1060mm
  Net/Gross weight:125/150kg

• Pipe connections :
  Liquid/Gas pipe: Ф12.7/Ф22.2mm
  Drain pipe:OD Ф32
• Cooling:
  Capacity: 28kw; 95.6kBut/h
  Input: 780W
• Heating:
  Capacity: 31.5kw; 107.5kBut/h
  Input: 780W
• Airflow rate：4700/4387/4073/3760/ 3447/3133/2820 m³/h
• Sound pressure level：51/50/48/46/44/43/42 dB(A)
