Winways UST Throw ALR Solid Panel Fresnel Screen

Name: Winways UST Throw ALR Solid Panel Fresnel Screen
Brand: hitoo
SKU: FS-100
Price: 2239.00 AUD
Availability: InStock

$2,239.00 AUD

~~$2,999.00 AUD~~ $2,239.00 AUD

Sale Sold out

Winways Fresnel Optical Hard Screen for Laser TV/ Projector

Feature:

Fully adapted to various UST projector
110% Ultra-wide color gamut

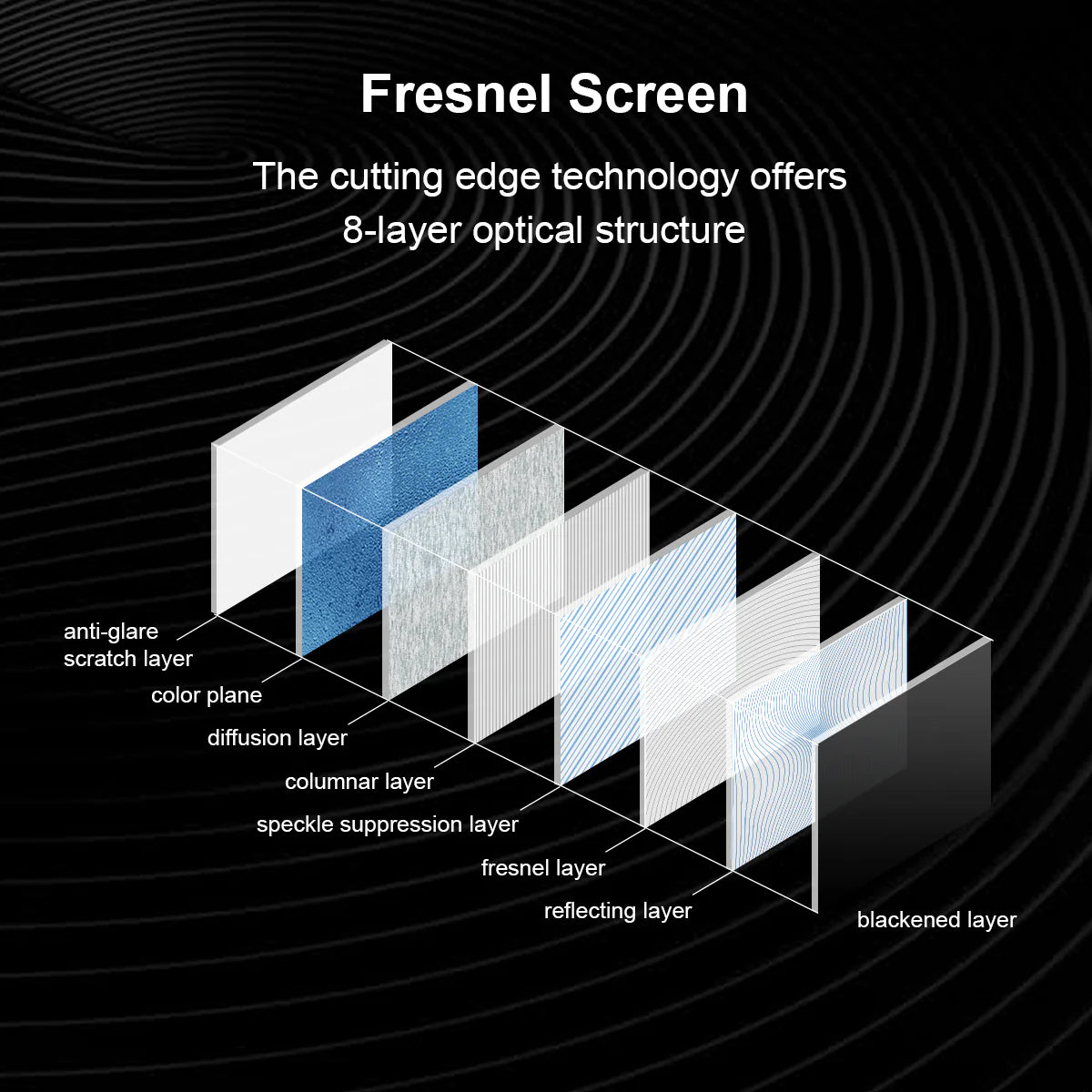

Only 0.7mm Ultra-thin optical film but with 8 layers optical structure

Anti-glare scratch layer
Color plane
Diffusion layer
Columnar lens layer
Speckle suppression layer
Fresnel lens layer
Reflecting layer
Blackebed layer

Support UST Projectors which throw ratio between 0.15-0.27, this screen is not suitable for long focal projectors
Support Projector Installation Method: orthographic projection or ceiling mounted projection

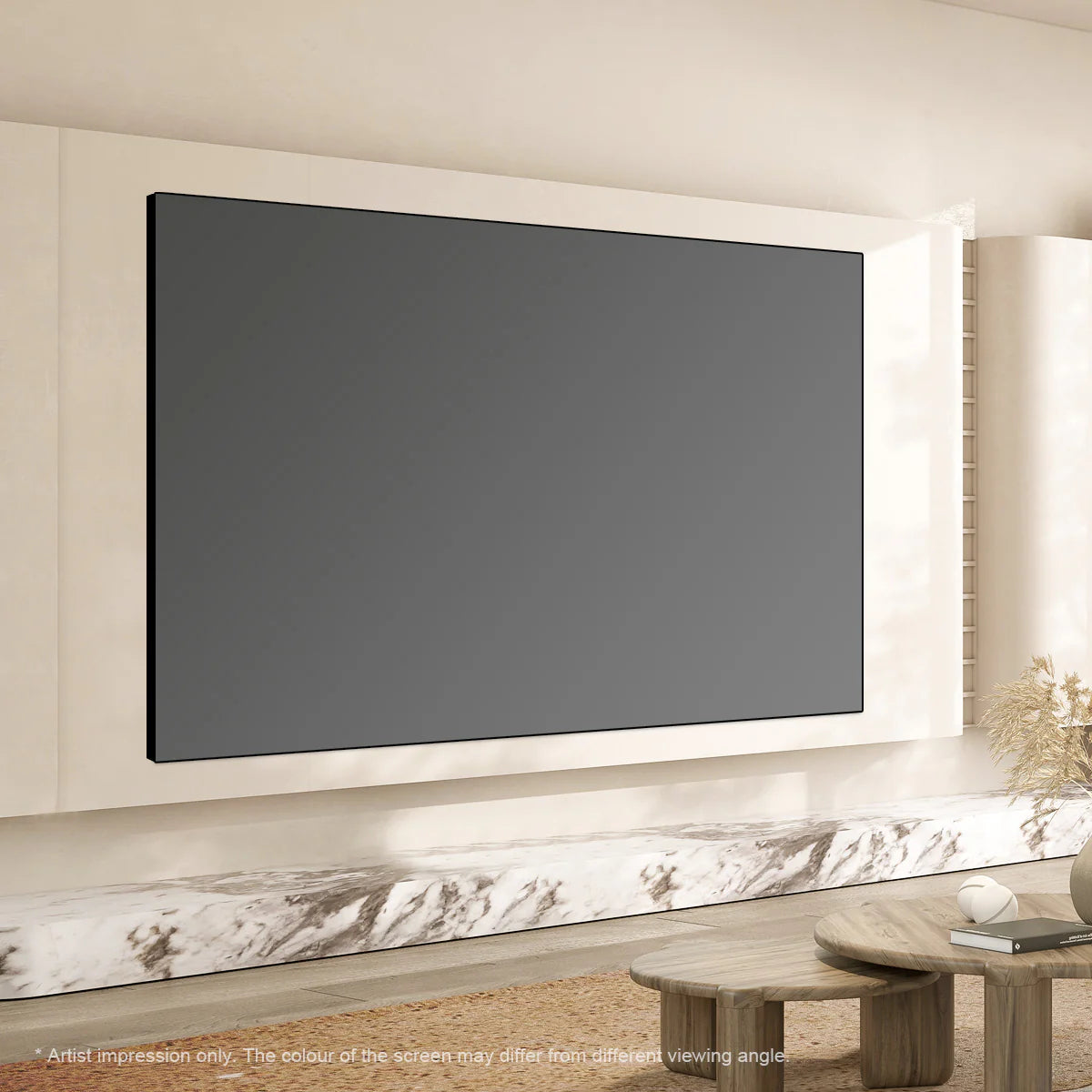

Screen Installation Supported: Wall-mounted or Bracket fixed

Specification:

Screen Material: Polymer Resin & Structural Aluminum Plate
Screen Type: Integrated Hard Screen (Can't fold)
Screen Color: Dark Grey
Screen Frame: Metal Black Frame & Bright Silver Border

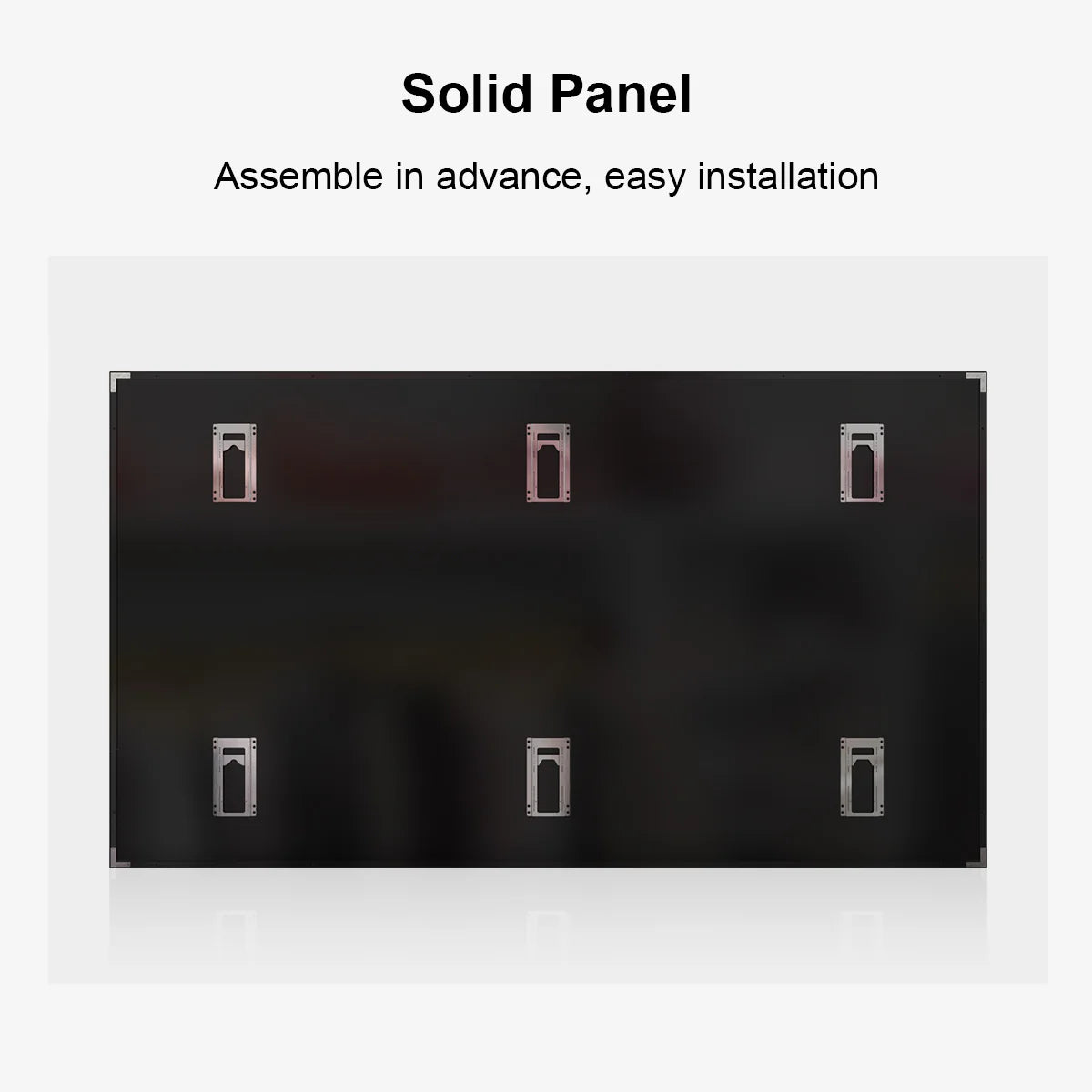

Backboard Design: 6 Hooks
ALR Rate ≥80%
Peak Gain ≥1.6

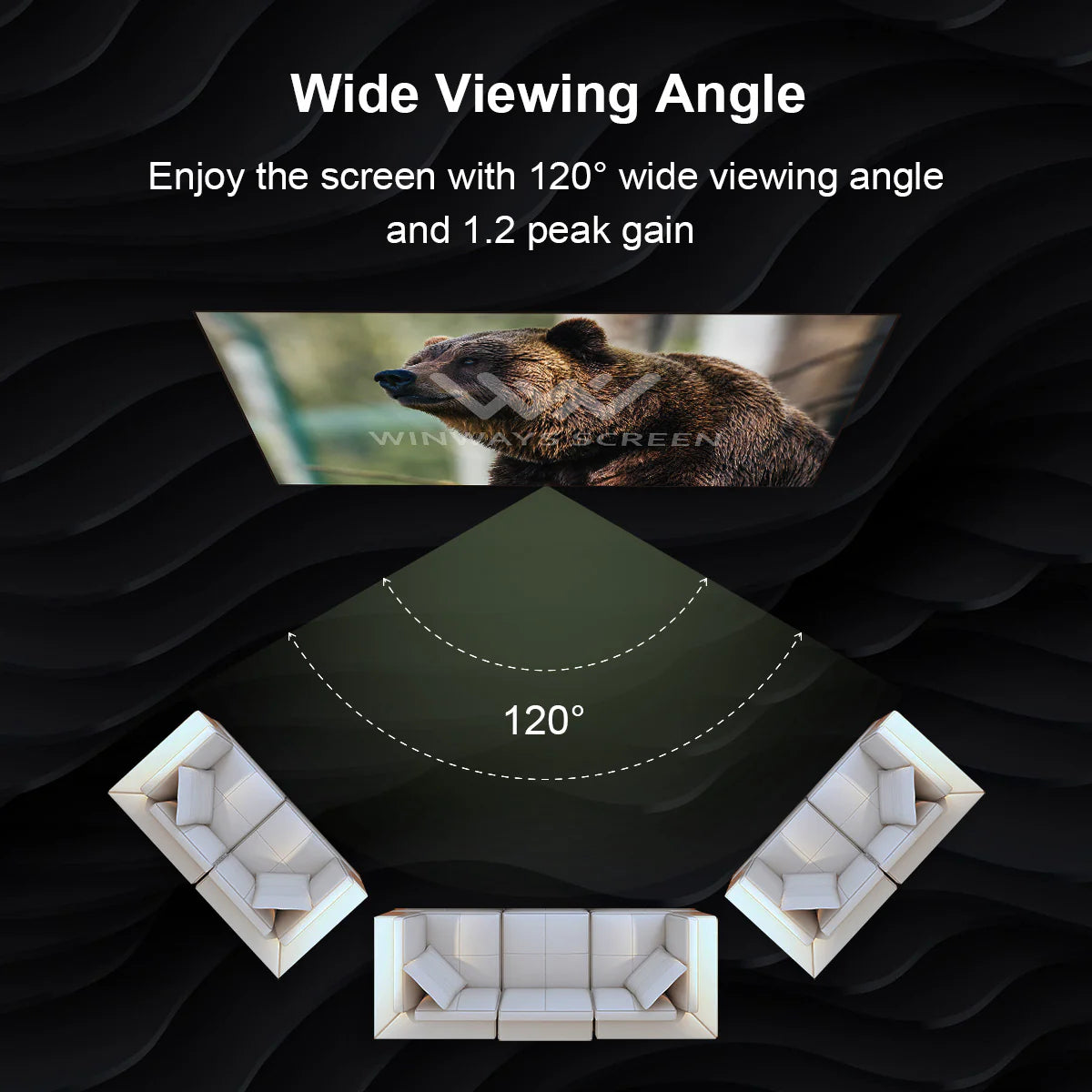

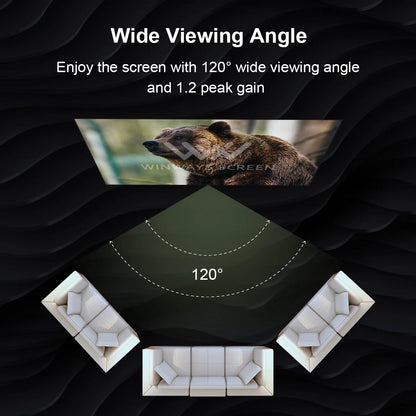

Viewing Angle: 120°±5°

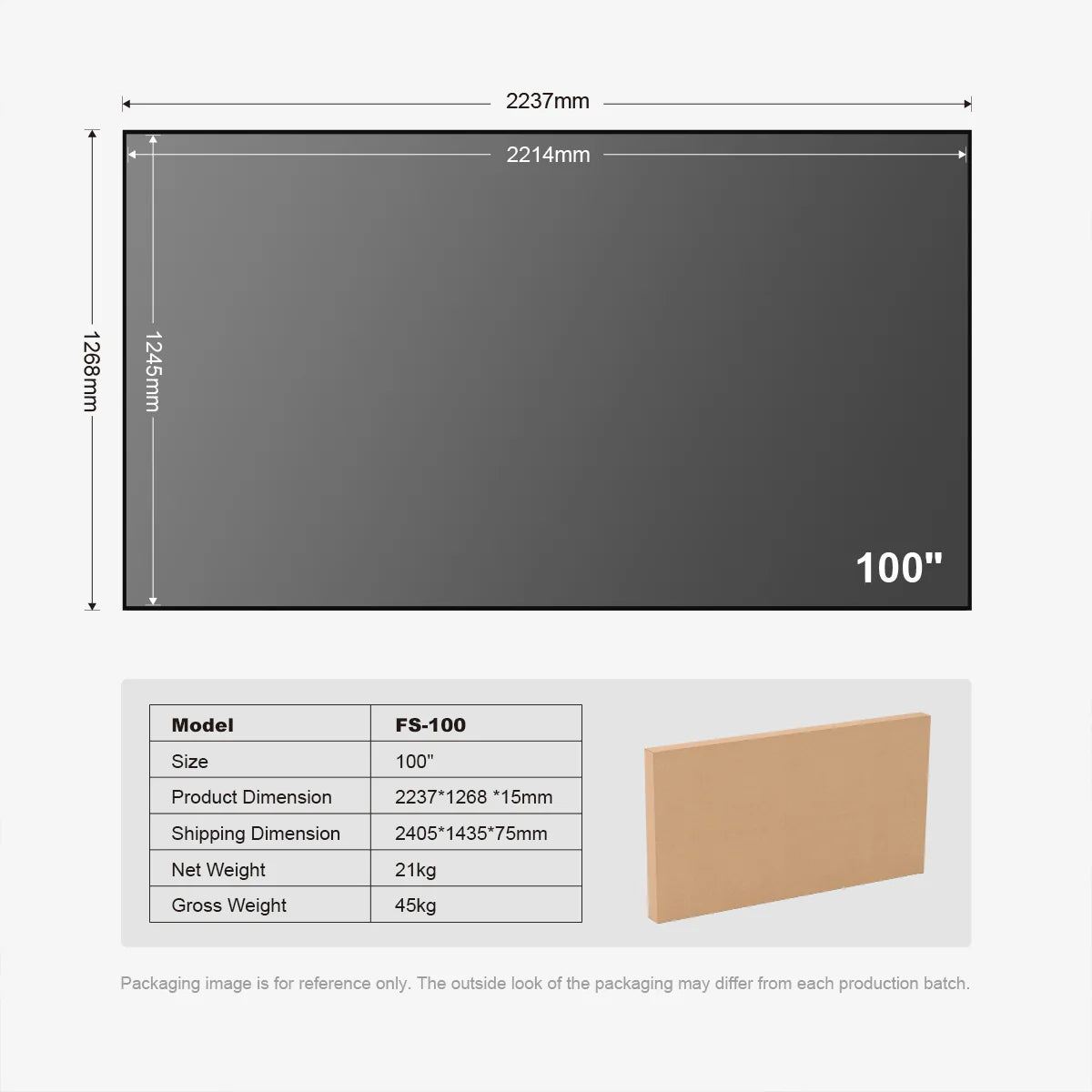

Package Dimension:

Size	Display Size(mm)	Installation Size(mm)	Packing Box Dimension(mm)	Net Weight(kg)	Gross Weight(kg)
120''	2675x1494	2680x1517x15	2680x1696x75	33	64
100''	2214x1245	2237x1268x15	2405x1435x75	21	45
88''	1948x1096	1971x1119x15	2140x1290x75	17	36

Warranty:

Product Warranty: 1 Year
Not intended or designed for commercial use

Notice: Please handle the screen with care during installation—avoid uneven force, follow the manual, and use two-person assistance to prevent membrane damage.
